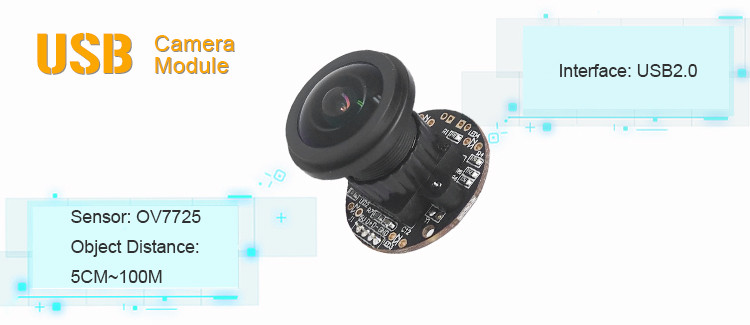

OmniVision 640*480 VGA CMOS Sensor USB2.0 OV7725 Color USB Camera Module

Brand Name : SINCERE FIRST

Model Number : SF352Y

Place of Origin : Guangdong , China

Certification : Rohs, Reach, ISO

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, Western Union, T/T, MoneyGram, Paypal and Others

Supply Ability : 350000 pcs / month

Delivery Time : 7 - 15 Work Days

Packaging Details : Package, Carton Box

Module Size : 24.5mm*24.5mm

Object Distance : 5CM~100M

Interface : USB2.0

Active Array Size : 640*480

Maximum Video Rate : 30fps

Len View Angle : 90°

Lens Construction : 5P+IR

F. NO : 2.8

IR Filter : 650±10nm

Max Pixel Rate : 28Mp/s

Contact Now

OmniVision 640*480 VGA CMOS Sensor USB2.0 OV7725 Color USB Camera Module

Product Description:

High quality color photo imaging at VGA resolution and video capability can be easily embedded into next generation low-power,low-noise demands products with this new module SF352Y. The camera module outputs image date with high speed USB 2.0 interface.With performance packaging technology ,it achieved compacted size with high reliability of this module.lt also features wide dynamic range by implementing high sensitivity and less noise.

Features:

  1. USB specification compliance
    USB 2.0&1.1compliance
    USB video V1.1compliance(UVC)
    USB audio V1.0 compliance
    USB high speed,full speed auto switching
    USB 2.0 HS/FS PC Camera Controller
    2. Supports,640*480,352*288,320*240,176*144,160*120 output formats.
    3. USB Video Class compliant,works with native driver in Microsoft Windows XP 32-bit/64-bit,Windows 7 system and Windows 8 system
    4. Adjustable parameters:Brightness/ Contrast /Saturation/Sharpness/Gamma/Backlight
    Compensation/Power Line Frequency/White Balance Temperature, Auto
    5. Upgradeable partial firmware and customized parameters through USB interface
    6. Software controlled connection to USB bus for re-enumeration
    7. Adjustable and dynamic frame rate control on USB transaction
    8. Automatic frame rate adjustment when exposure in low light environment
    9. Selective suspend to minimize power consumption

Technical Parameters:

Module Name FPC Camera Module
Module Size 24.5mm*24.5mm
Temperature(Operation) -20°Cto70°C
Temperature(StableImage) 0°C to 50°C
Assembly Technique SMT(ROSH)
Object Distance 5CM~100M
PCB Printing Ink Black
Interface USB2.0
Power USB Bus Power
Image Compression YUY2
Sensor Type 1/4inch
Active Array Size 640*480
Maximum Video Rate 30 fps
Len View Angle 90°

Applications:

ATM Machines

Robot Vision Cameras

Sensing Toys

Monitoring

Drones

OmniVision 640*480 VGA CMOS Sensor USB2.0 OV7725 Color USB Camera ModuleOmniVision 640*480 VGA CMOS Sensor USB2.0 OV7725 Color USB Camera ModuleOmniVision 640*480 VGA CMOS Sensor USB2.0 OV7725 Color USB Camera ModuleOmniVision 640*480 VGA CMOS Sensor USB2.0 OV7725 Color USB Camera Module
