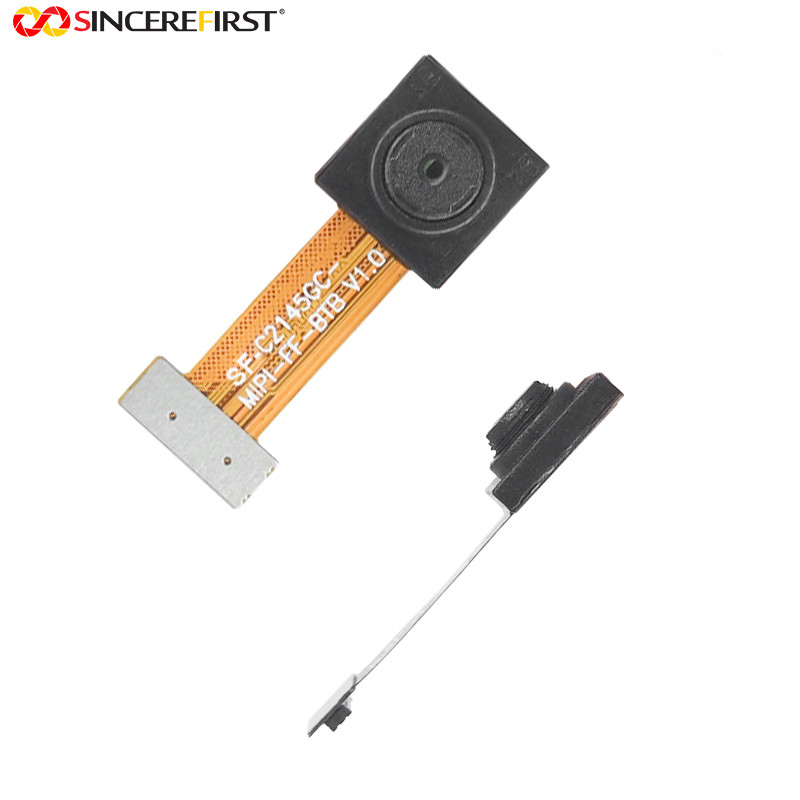

2.66mm Focus Length Compact Camera Module 2MP GC2145 Machine Vision Inspection System

Name: 266mm Focus Length Compact Camera Module 2MP GC2145 Machine Vision Inspection System
Brand: SINCERE FIRST
Price: 1 USD

Wholesale 2.66mm Focus Length Compact Camera Module 2MP GC2145 Machine Vision Inspection System from china suppliers

Brand Name : SINCERE FIRST

Model Number : SF-C2145GC-MIPI-FF-BTB

Place of Origin : Guangdong , China

Certification : Rohs, Reach, ISO

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, Western Union, T/T, MoneyGram, Paypal and Others

Supply Ability : 350000 pcs / month

Delivery Time : 7 - 15 Work Days

Packaging Details : Package, Carton Box

Fov(D) : 71°

Interface : MIPI

Output Format : RAW 10 bit

F Number : 2.8

Focus Length : 2.66mm

Focus Range : 45cm

Sensor : GC2145

Connector : AXE630124

Focusing Range : 45cm

Contact Now

2MP GC2145 Machine Vision Inspection System Compact Camera Module

Product Description:

GC2145 is a high quality 2Mega CMOS image sensor, for mobile phone camera applications and digital camera products. GC2145 incorporates a 1616V x 1232H active pixel array, on-chip 10-bit ADC, and image signal processor. According to different light conditions , The on-chip ISP provides a very smooth AE (Auto Exposure) and accurate AWB (Auto White Balance) control .Besides , interpolation, de-noise, and color correction, gamma correction are supported, which can revert the real scene better. The sensor also provides various data formats, such as Bayer RGB, RGB565, YCbCr 4:2:2. All sensor parameters and features are controlled through a standard 2-wire serial interface. Internal master clock can be generated by on-chip Phase Lock Loop(PLL) oscillator.

Features:

Standard optical format of 1/5 inch
Various output formats: YCbCr4:2:2, RGB565,Raw Bayer
Power supply requirement : AVDD: 2.7~3.0V DVDD: 1.7~1.9V IOVDD:1.7~3.0V
PLL support
CORE
Windowing support
MIPI interface support: Single lane Double lane(CSI-2 V1.0/PHY-1.0)
Horizontal /Vertical mirror
Image processing module
Package:CSP/COB/wafer

Applications:

Digital still cameras and camcorders
Video telephony and conferencing equipment
Security systems
Industrial and environmental systems
